Introduction

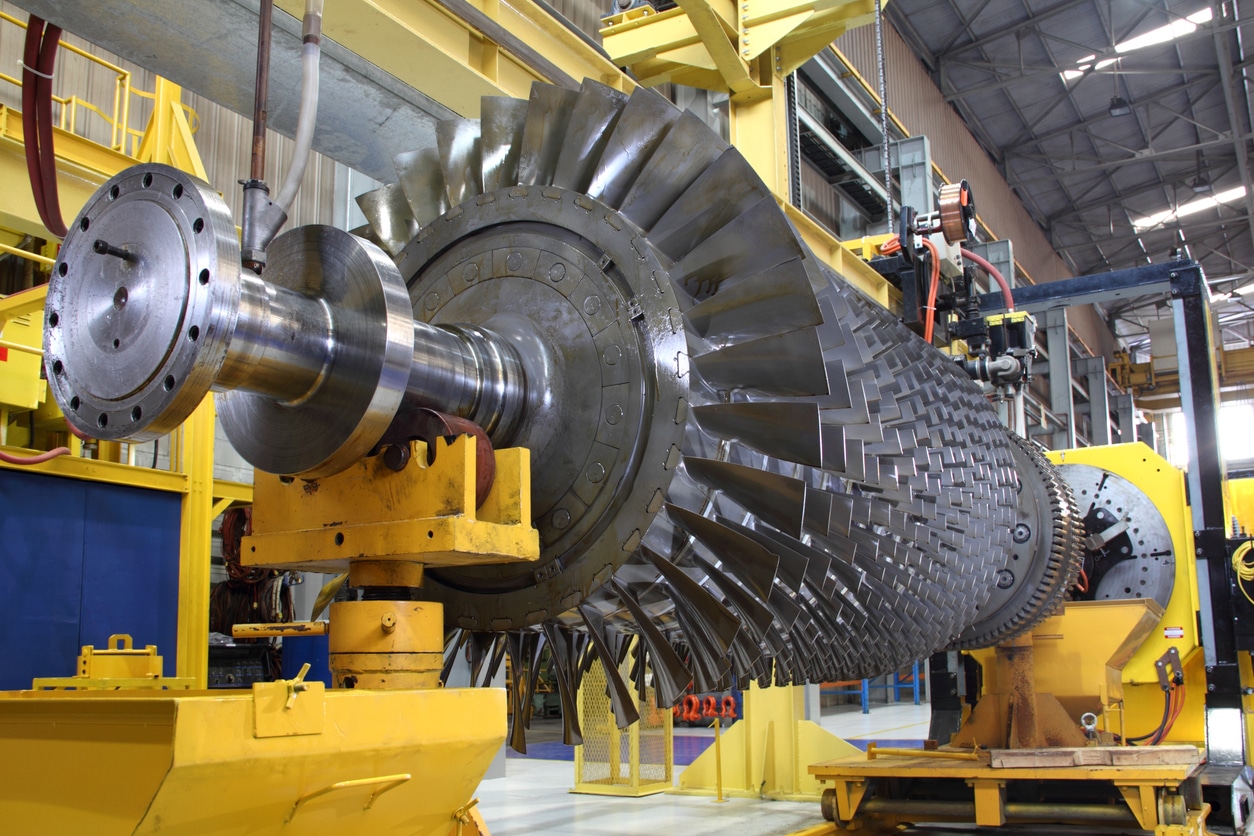

Gas turbines are widely used in both standalone and combined cycle power plants. These turbines operate by compressing air, mixing it with fuel, and igniting the mixture to generate high-temperature exhaust gases, which drive the turbine blades. To push thermal efficiency, the turbine inlet temperatures (TITs) are often elevated beyond 1,500°C. However, such extreme heat poses a risk to internal components. This is where advanced cooling technologies come into play, helping maintain structural integrity and ensuring uninterrupted operation.
Why Cooling is Necessary in Gas Turbines
Thermal Protection
- The core of a gas turbine operates at extreme temperatures generated by combustion.
- Cooling mechanisms prevent heat damage to blades, vanes, and liners, which would otherwise melt, crack, or warp.
- Efficient cooling keeps surfaces below critical temperature limits, ensuring component stability under stress.
Material Limitations
- Even advanced superalloys have temperature limits (~1,050°C).
- With gas path temperatures much higher, internal cooling enables use of existing materials by reducing their exposure.
- Without cooling, the turbine would require exotic materials that are cost-prohibitive and hard to manufacture.
Efficiency Enhancement
- Higher combustion temperatures mean better energy conversion according to thermodynamic laws.
- Cooling enables these high temperatures by managing heat distribution, allowing the turbine to run hotter without failure.
- This leads to more power generation per unit of fuel, improving plant efficiency.
Reliability and Safety
- Turbine parts expand and contract due to thermal cycles.
- Proper cooling minimizes uneven heating, reducing mechanical stress, distortion, and fatigue failure.
- This ensures safe, reliable operation even under fluctuating loads and long operation periods.
Cooling Techniques Used in Gas Turbines
Air Cooling (Internal Cooling)
- Compressed air from the compressor is channeled into turbine blades.
- It flows through internal serpentine passages, absorbing heat and reducing blade metal temperature.
- In some designs, impingement air jets target specific hot zones for direct cooling.
- Internal cooling is a foundation for all modern high-performance gas turbines.
Film Cooling
- Cool air is ejected through tiny holes on the blade surface, forming a cool air film between the blade and hot gases.
- This thin layer acts as an insulation barrier, significantly reducing the heat absorbed by the blade.
- Precision design is critical, as poor air distribution can cause aerodynamic losses.
Transpiration Cooling
- A cutting-edge technique using porous blade materials like ceramics or porous metals.
- Cooling air flows through the tiny pores in the blade material itself.
- This ensures even surface cooling and minimal thermal stress, though the cost and material limitations limit its wide usage.
Liquid Cooling (Rare)
- Primarily used in industrial or experimental turbines, or aircraft auxiliary turbines.
- A cooling liquid circulates in jackets around hot parts, transferring heat to an external exchanger.
- Liquid systems are more efficient at heat removal but risk leakage and are mechanically complex.
Key Components That Need Cooling
Turbine Blades and Vanes
- These face the hottest gases in the cycle and rotate at high speeds.
- They are equipped with complex internal passageways, cooling holes, and coatings.
- Cooling is critical to maintain aerodynamic shape and prevent mechanical degradation.
Combustor Liner
- Surrounds the combustion zone and absorbs radiant and convective heat.
- Must resist high-frequency pressure waves, thermal gradients, and oxidation.
- Liners typically use multi-hole cooling designs for even distribution of cooling air.
Transition Ducts
- Channels that guide hot gases from combustors to turbine stages.
- Irregular shapes lead to hot spots due to turbulent gas flows.
- Cooling ensures thermal protection for these high-stress parts.
Nozzles and Stators
- These stationary components help align and accelerate gas flow into the moving blades.
- Incorrect cooling can lead to misalignment, pressure drops, or deformation, affecting turbine efficiency.
Benefits of Efficient Cooling Systems
Higher Output Power
- Efficient cooling allows for increased combustion temperature, which boosts energy extraction from the fuel.
- Power plants can operate at higher loads without compromising component life.
Improved Fuel Efficiency
- Enhanced cooling enables leaner combustion, reducing the amount of fuel needed to produce the same power.
- Results in significant cost savings and energy conservation.
Extended Service Life
- Cooling protects against corrosion, oxidation, thermal shock, and mechanical wear.
- Maintenance cycles are lengthened, reducing plant downtime.
Reduced Emissions
- Stable, controlled combustion and cooler components help lower emissions of NOx, CO, and CO₂.
- Aligns with modern environmental regulations and green power goals.
Lower Maintenance Costs
- Cooling reduces the frequency of part replacements and overhaul.
- Operational interruptions and labor costs are also minimized.
Advanced Technologies in Turbine Cooling
Additive Manufacturing (3D Printing)
- Allows fabrication of complex blade geometries with intricate cooling channels.
- Enables customization of cooling paths to match specific hot zones.
Thermal Barrier Coatings (TBCs)
- Thin ceramic coatings applied to blade surfaces reflect radiant heat and slow heat absorption.
- Combined with cooling air, they extend component life and reduce cooling air requirements.
Smart Sensors and Monitoring
- Embedded sensors detect temperature, vibration, and wear in real-time.
- Data helps optimize cooling air distribution and predict failures before they occur.
Hybrid Cooling Methods
- Use combinations of internal convection, impingement, and film cooling.
- Maximizes cooling effectiveness while minimizing air usage and efficiency loss.
Conclusion
Efficient cooling in gas turbines is not just a necessity—it’s a performance enabler. It allows turbines to run hotter, safer, and more efficiently. As power demands rise and emissions regulations tighten, innovative cooling solutions will play an increasingly critical role in modern power generation. Technologies like 3D-printed cooling channels, transpiration cooling, and smart thermal monitoring systems are shaping the next generation of turbines that will deliver greater power with lower environmental impact.
